Function
This medical device which covers the mouth, the nose, the chin assured a barrier which limits the transmission of infectious agent among the person, the hospital staff and the patient

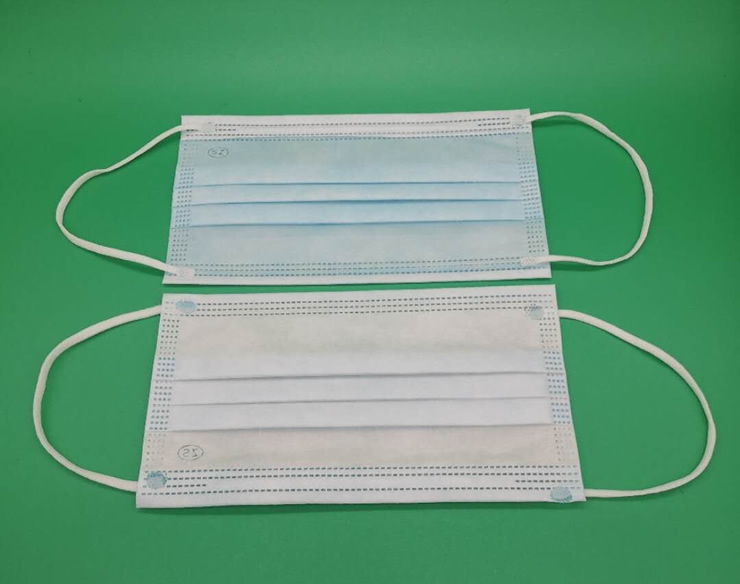

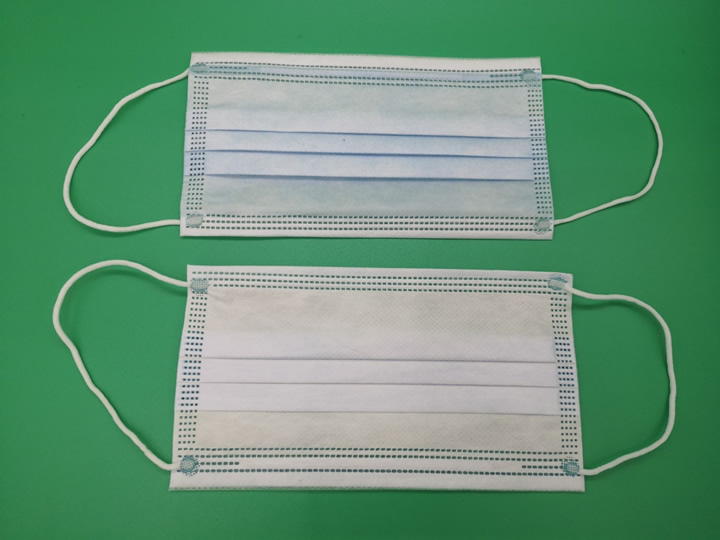

Structure
Three layers design, ear loops

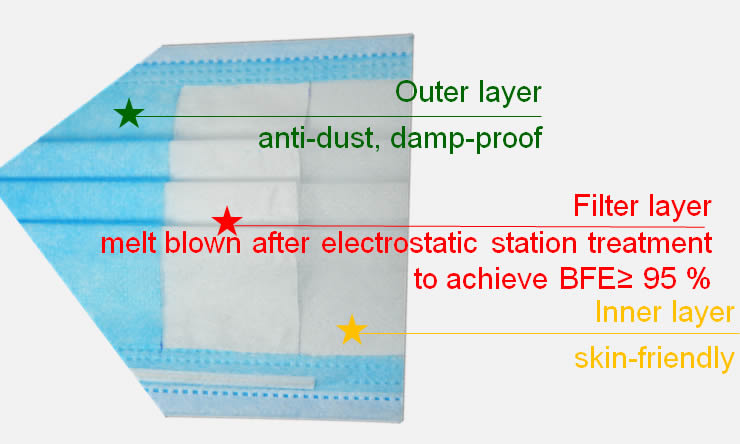

Composition

composition	color	details	Raw material
Outer layer	Blue	25g/m² ± 2g/m²	polypropylene
Filter layer: melt blown	White	25g/m² ± 2g/m²	polypropylene
Inner layer:	White	25g/m² ± 2g/m²	polypropylene
Ear loops	White	N/A	Polyamide + polyurethane

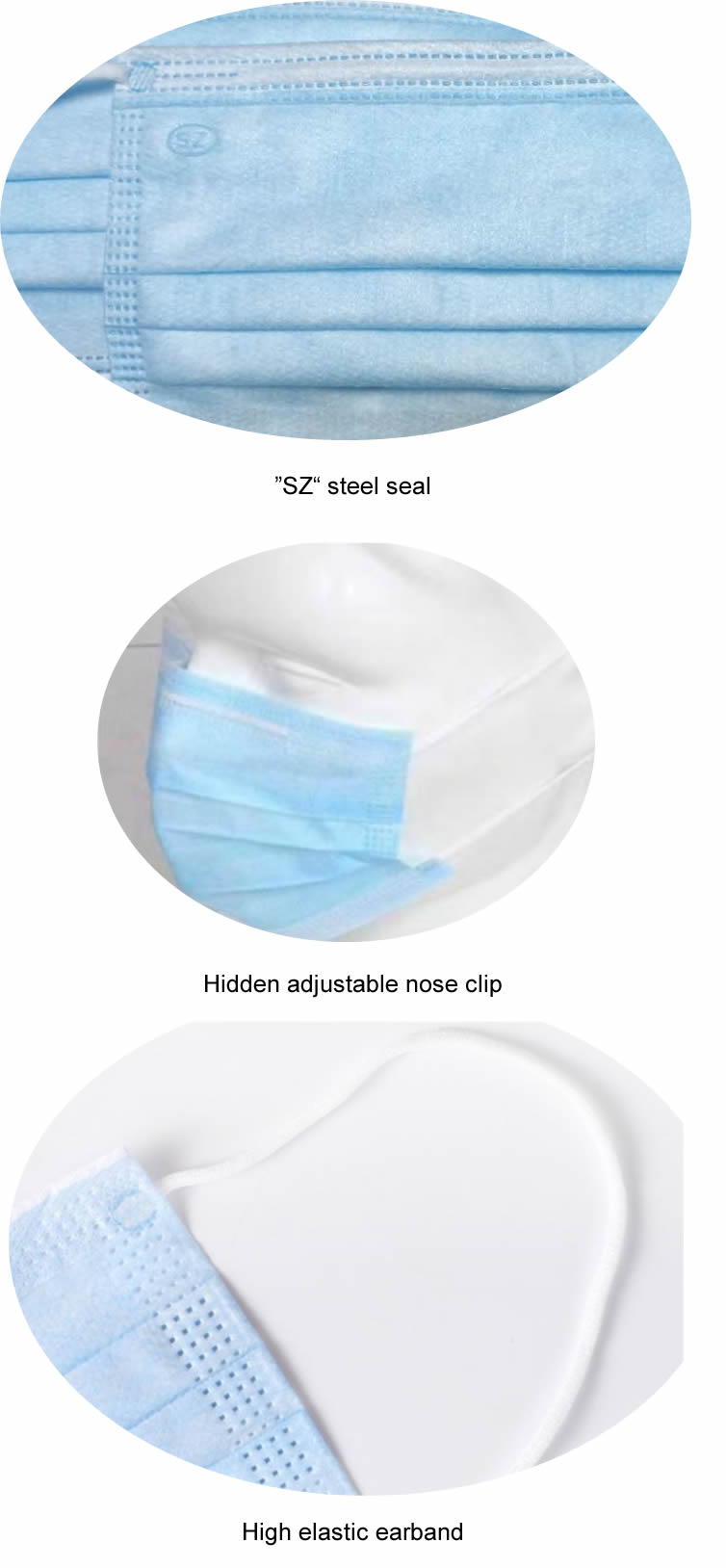

Nose bar	White	N/A	flexible plastic piece laminated with aluminum wire

Product Characteristics

characteristics	Values/results

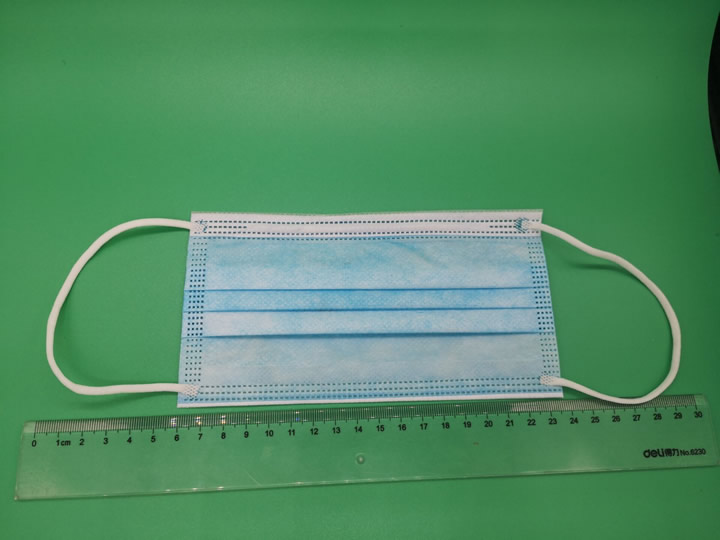

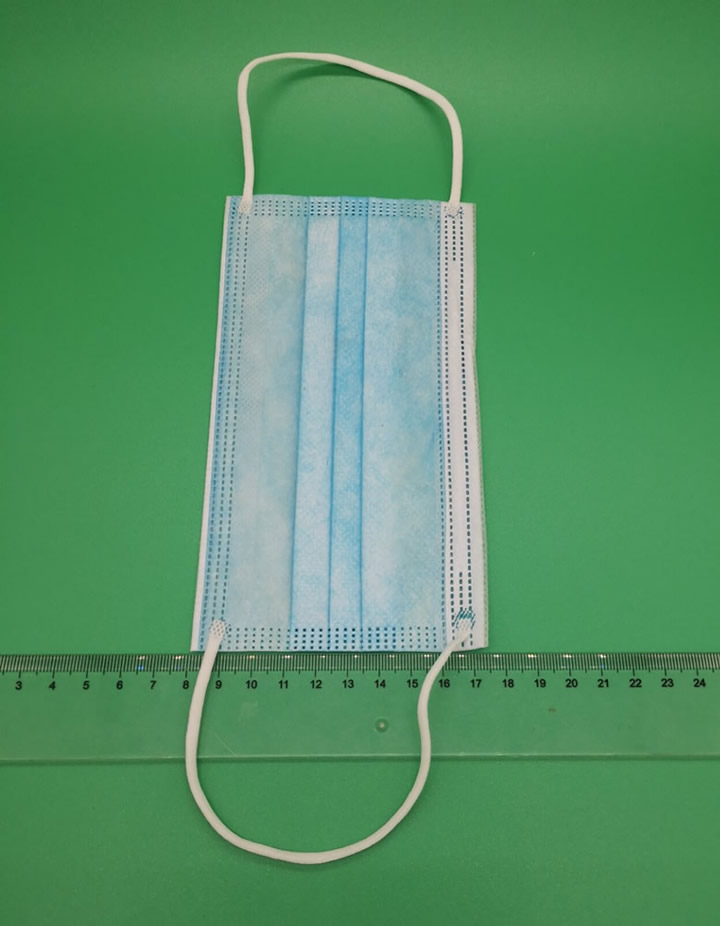

Mask dimension	Length : 175 mm ±5 mm Width: 90mm ± 5 mm Length of ear loop: 165 ± 5 mm Nose bar length : 85mm± 5 mm

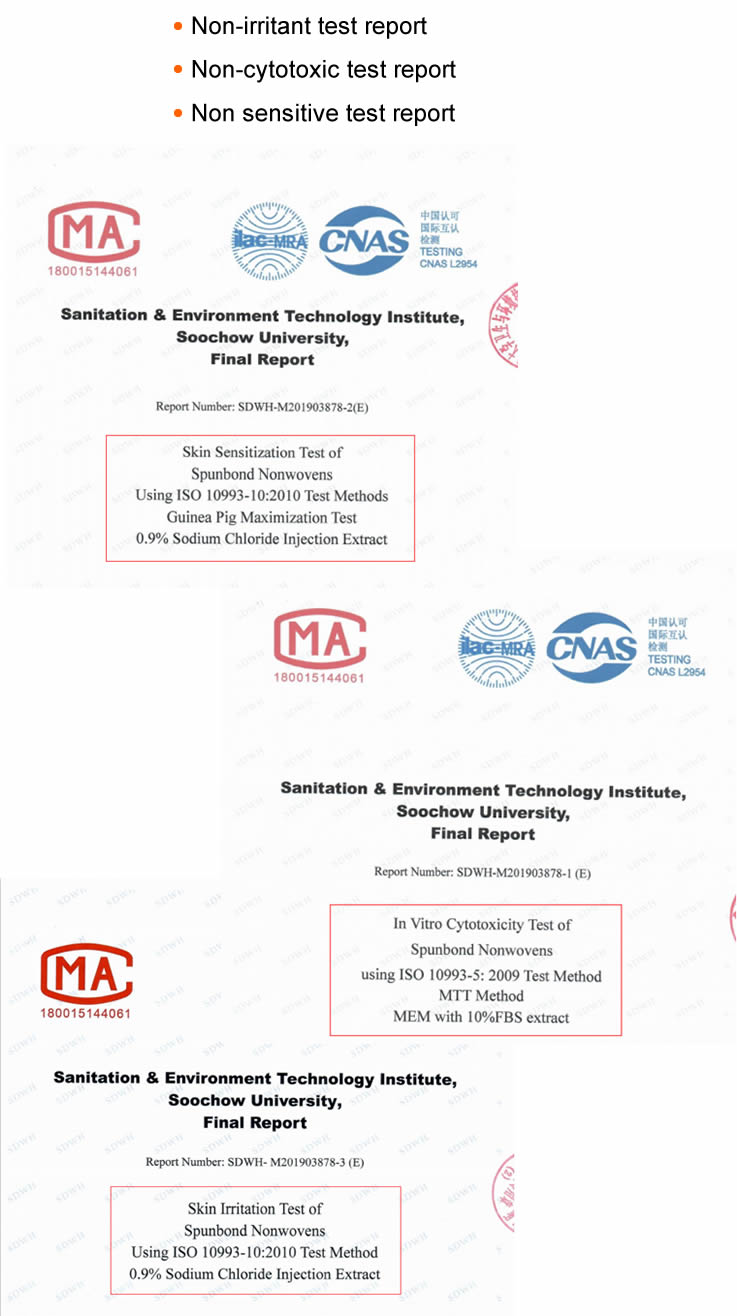

Biocompatibility	Non cytotoxic, non irritant and non sensitive
Bacterial filtration efficiency/BFE	≥ 95 %
respiratory strength	< 29,4 Pa/cm²

How to use
1. wash hands, dry them before opening the box. Put your finger through the ear loops. Nose bar should be found above while the blue layer should be at outside. Place the mask to cover your nose and mouth;
2. Put the ear loops on your ear. Pull the mask by its upper and lower edge to fully unfolded;
3. Adjust the nose bar to make sure there are no gaps between your face and mask;
4. Remove the mask from the behind by grasping the ear loops (do not touch the front of mask);
5. Discard in a covered garbage after use and wash your hands carefully.

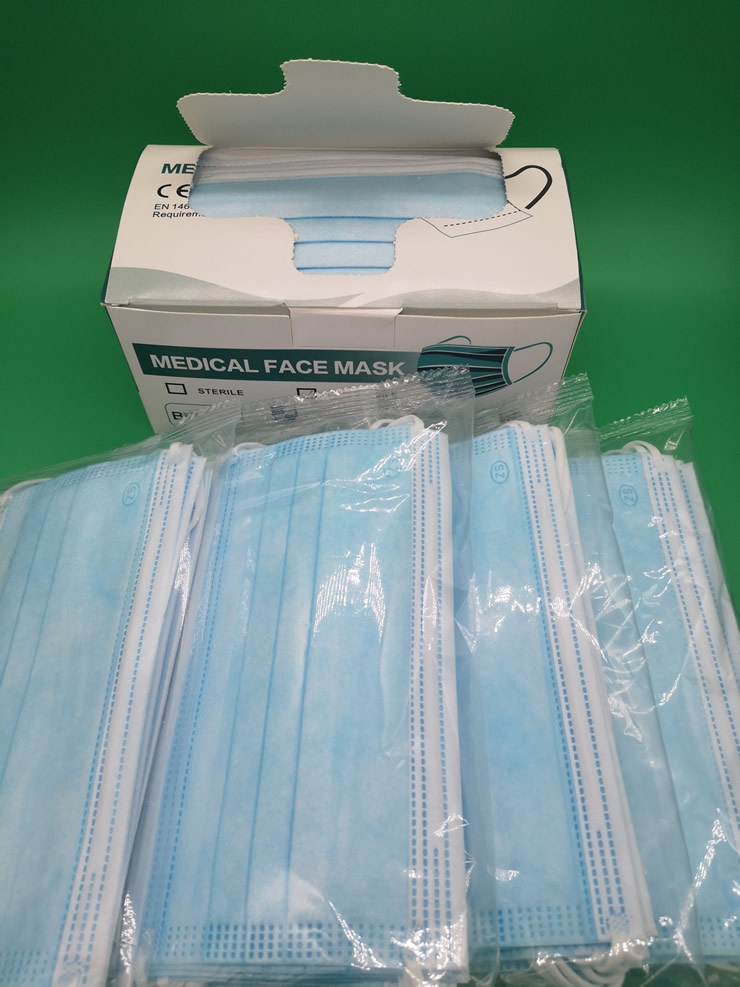

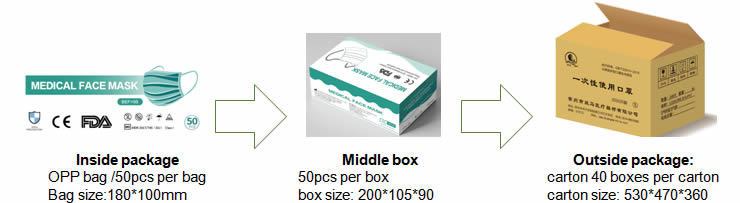

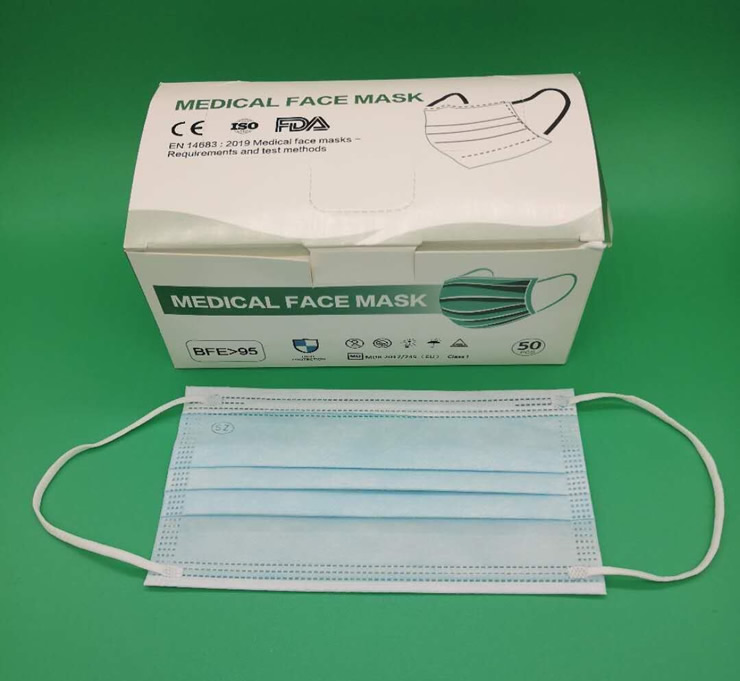

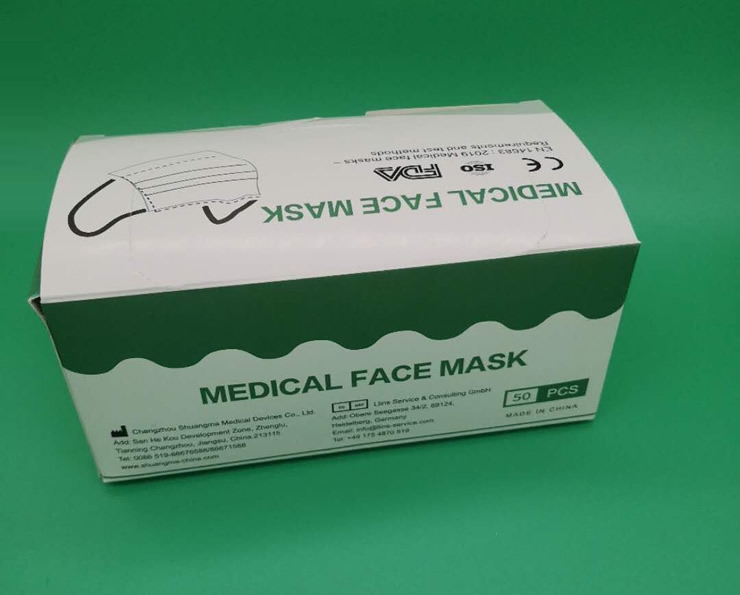

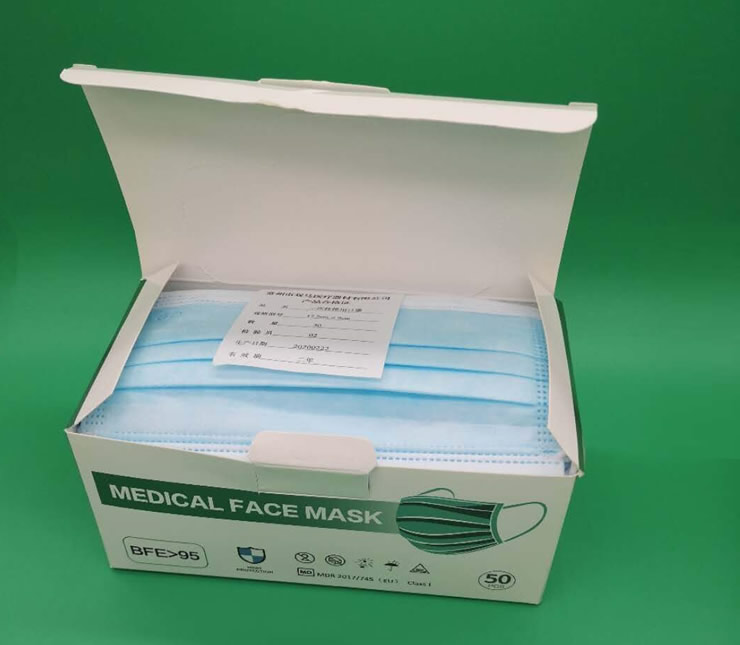

Packaging
